Quality Inspection for Metal Powder Atomisation Machine - VPC Series Vacuum Pressure Casting Machine for Jewellery – Hasung Detail:

Features

Hasung Precious Metals Equipment Advantages

Hasung VC series vacuum pressure casting machines reach from small to large capacities, from semi-automatic systems to solutions for a fully automatic casting production. A lot of special features enable you to optimize each casting according to its individual characteristics. Generally, for gold silver jewellery casting purpose, the smallest capacity is from 1kg, 2kg, 3kg, 4kg up to 8kg, to maximum capacity such as 20kg or 30kg.

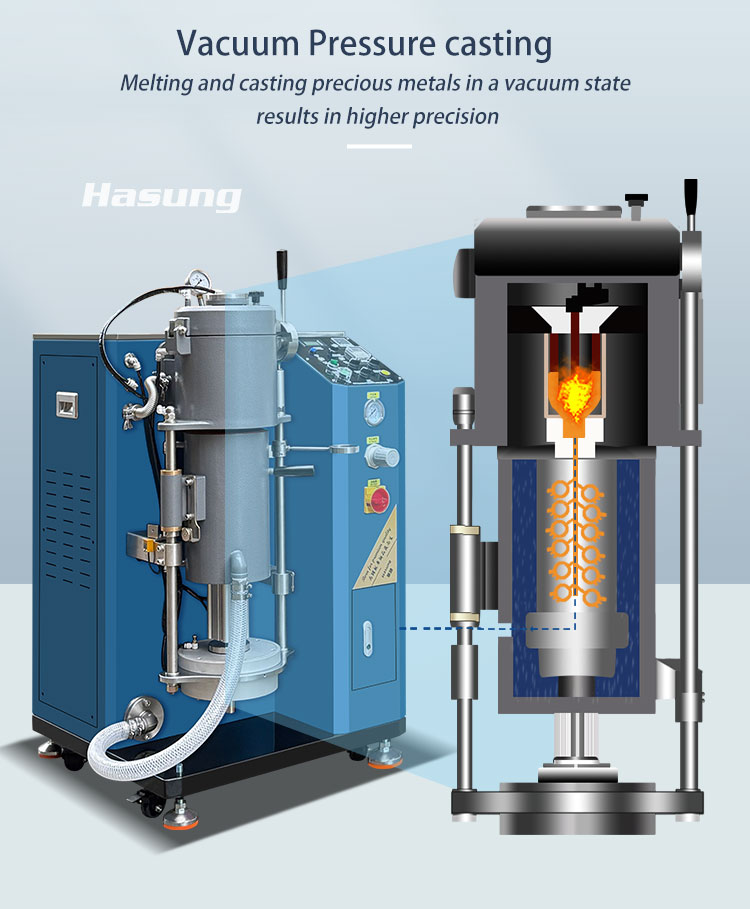

Automatic vacuum and overpressure in the upper melting chamber and down flask chamber

When switch on “Cast”, Vacuum and inert gas in the melting chamber provides the degassing of the alloy and avoids undesired oxidation during melting. Vacuum in the down flask chamber during casting improves the form filling when casting filigree parts and avoids air inclusions. Before metal pouring, vacuum and inert flowing into down flask chamber for cleaning which guarantees smooth casting metals.

Why Do You Choose Hasung Vacuum Pressure Casting Machine?

Hasung vacuum Casting machines compare to other companies

1. After mode without oxidation
2. Variable heat for gold loss

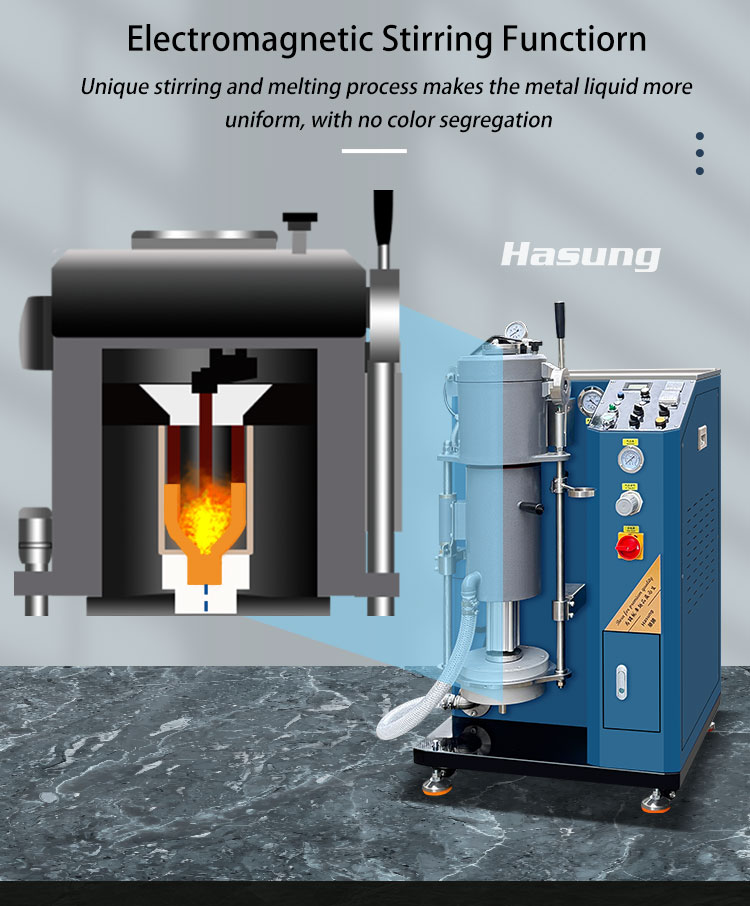

3. Extra mixing for good segregation of gold
4. Good melting speed
5. Easy for cleaning dust effecting by plaster mould
6. Easy to maintain
7. Accurate pressure timing
8. Self diagnosis – P.I.D auto tuning
9. Easy operation with only one button “CAST ” to finish casting job.

Hasung the original parts are from well-known domestic Japan and German brands.

Technical Parameters

Model No. HS-VPC1 HS-VPC2 HS-VPC4 HS-VPC8
Voltage 220V, 50/60Hz single phase 220V/380V, 50/60Hz 3 phaese 380V, 50/60Hz 3 phases
Power 5KW 5KW/8KW 15KW
Max Temp 1500°C

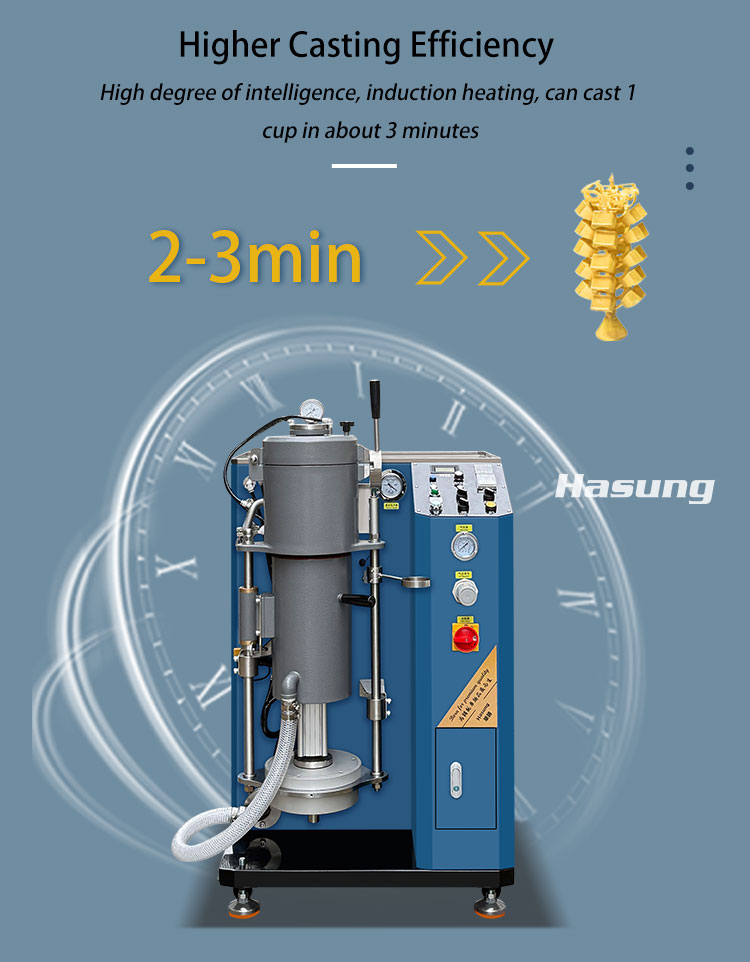

Melting Time 2-3  min. 3-5 min. 3-6 min. 3-5 min.
Inert Gas Argon / Nitrogen
Pressure 10-300Kpa (Adjustable)
Temp Accuracy ±1°C
Capacity (Gold) 1kg 2kg 4kg 8kg
Max. Flask size  5″x12″ 5″x12″/6.3″x12″ 6.3″x12″/8.6″x13″/10″x13″
Vacuum Pump High quality vacuum pump/German vacuum pump, vacuum degree – 100KPA (optional)
Application Gold, K gold, silver, copper and other alloys
Operation method One-key operation to complete the entire process, POKA YOKE foolproof system
Cooling type Water chiller(sold separately) or Running water
Dimensions 680*880*1530mm
Weight approx. 150kg approx. 150kg approx. 200kg approx. 250kg

Product detail pictures:

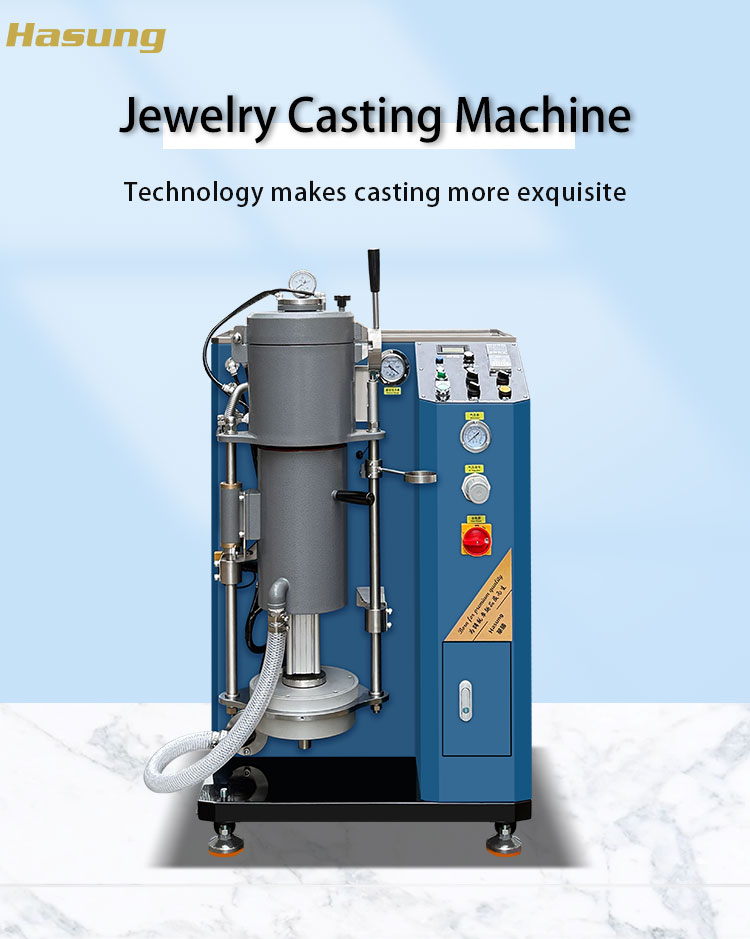

Quality Inspection for Metal Powder Atomisation Machine - VPC Series Vacuum Pressure Casting Machine for Jewellery  – Hasung detail pictures

Quality Inspection for Metal Powder Atomisation Machine - VPC Series Vacuum Pressure Casting Machine for Jewellery  – Hasung detail pictures

Quality Inspection for Metal Powder Atomisation Machine - VPC Series Vacuum Pressure Casting Machine for Jewellery  – Hasung detail pictures

Quality Inspection for Metal Powder Atomisation Machine - VPC Series Vacuum Pressure Casting Machine for Jewellery  – Hasung detail pictures
