Our goal is usually to deliver high quality items at aggressive price ranges, and top-notch service to shoppers around the entire world. We're ISO9001, CE, and GS certified and strictly adhere to their high quality specifications for Metal Powder Making Machine , Casting Machine Continuous , Continuous Casting Machine For Copper , We adhere to the tenet of "Services of Standardization, to Meet Customers' Demands".
OEM/ODM China Gold Wire Making Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung Detail:

Technical Parameters

Power Supply 380V 50/60Hz,3 phase
Power Input 8KW 15KW
Max Temp 1500°C
Melting speed 3minutes 3- 5min
Capacity 2kg(18K gold) 5kg(18K gold)
Suitable for K-Gold,Gold, silver, copper
Maximum flasks diameter can be customized

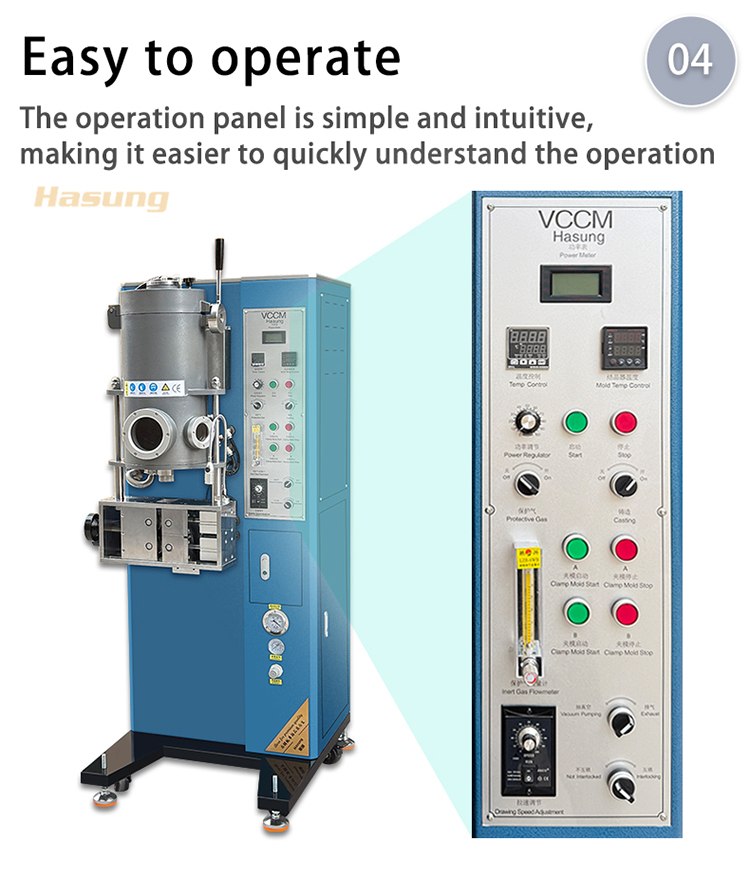

Operation method One-key operation to complete the entire process, POKA YOKE foolproof system
control system Mitsubishi PLC+Human-machine interface intelligent control system (optional)

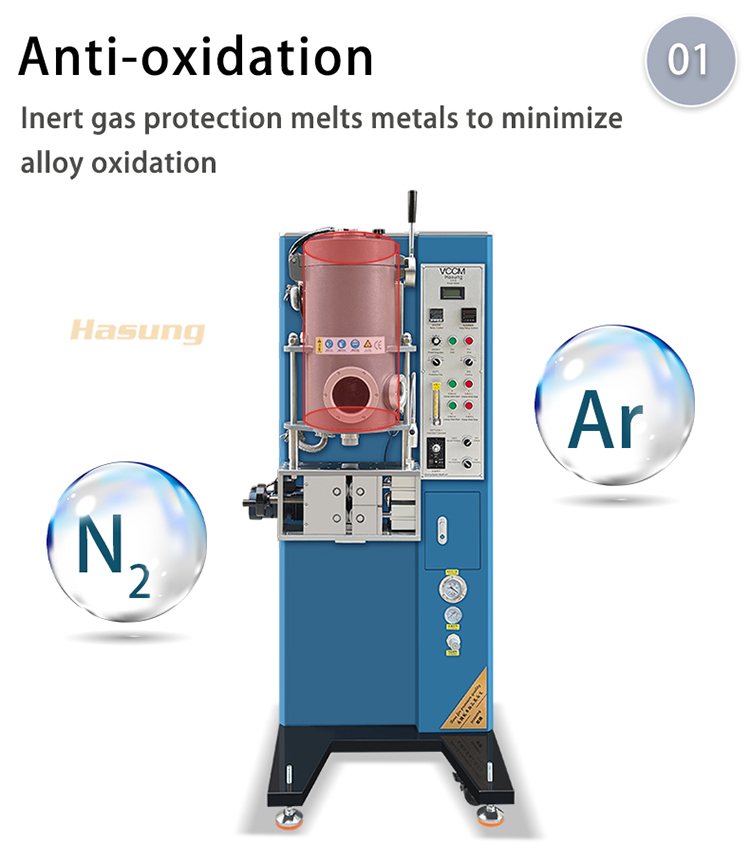

 Blanketing with inert gas Nitrogen/argon  selection
 Temperature accuracy ±1℃
Product shape strip, square, tube, can be customized strip
Water pressure 0.2-0.4Mpa
Water temp 18-25C
Cooling type: water chiller or Running water
Vacuum  pump Original German vacuum pump -98Kpa
Dimensions 960*600*1580mm
Weight 280KG 280KG

Product Display

HS-VCC-(1)
HS-VCC-(3)
HS-VCC-(2)


Product detail pictures:

OEM/ODM China Gold Wire Making Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung detail pictures

OEM/ODM China Gold Wire Making Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung detail pictures

OEM/ODM China Gold Wire Making Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung detail pictures

OEM/ODM China Gold Wire Making Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung detail pictures
