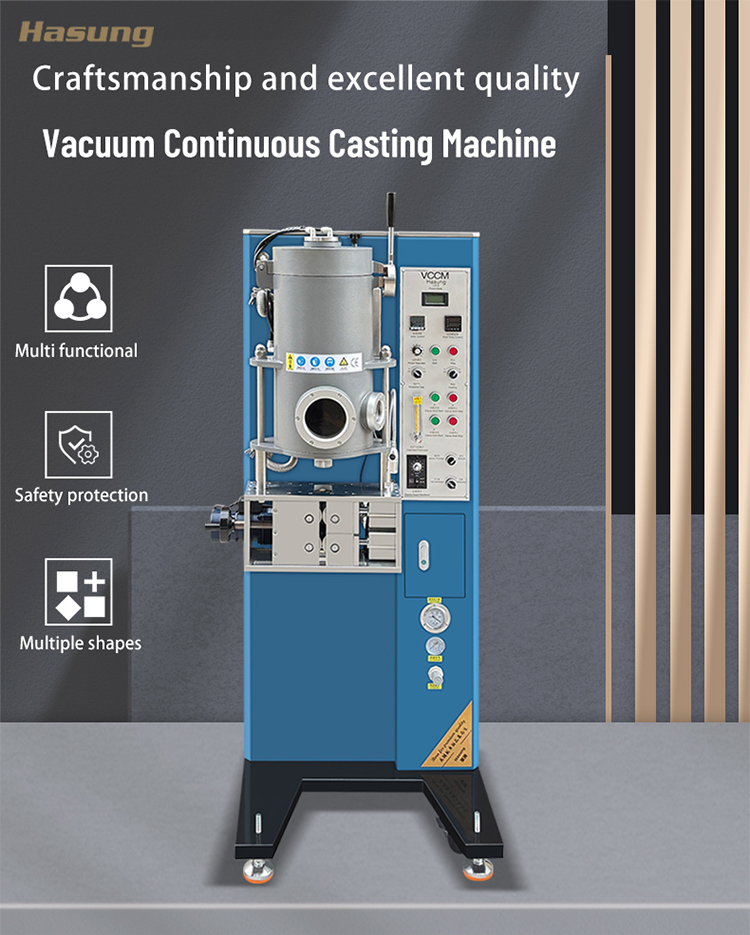

High definition Gold Silver Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung

Short Description:

Product Detail

Product Tags

Feedback (2)

Our enterprise since its inception, constantly regards product good quality as organization life, constantly improve production technology, strengthen merchandise high quality and continuously strengthen enterprise total good quality administration, in strict accordance with all the national standard ISO 9001:2000 for Vacuum Silver Granulating Machine , Vacuum Melting Furnace , Jewelry Casting Machine Vacuum Pressure , To benefit from our strong OEM/ODM capabilities and considerate services, please contact us today. We will sincerely create and share success with all clients.

High definition Gold Silver Machine - Vacuum Continuous Casting Machine for Gold Silver Copper Alloy – Hasung Detail:

Technical Parameters

Power Supply	380V 50/60Hz,3 phase
Power Input	8KW	15KW
Max Temp	1500°C
Melting speed	3minutes	3- 5min
Capacity	2kg(18K gold)	5kg(18K gold)
Suitable for	K-Gold,Gold, silver, copper
Maximum flasks diameter	can be customized

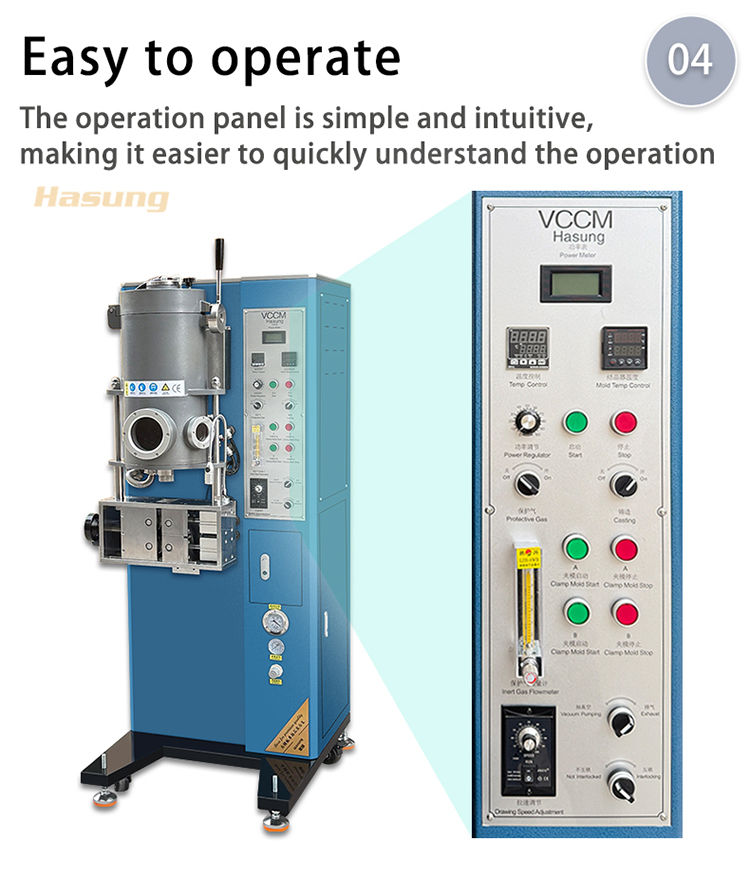

Operation method	One-key operation to complete the entire process, POKA YOKE foolproof system
control system	Mitsubishi PLC+Human-machine interface intelligent control system (optional)

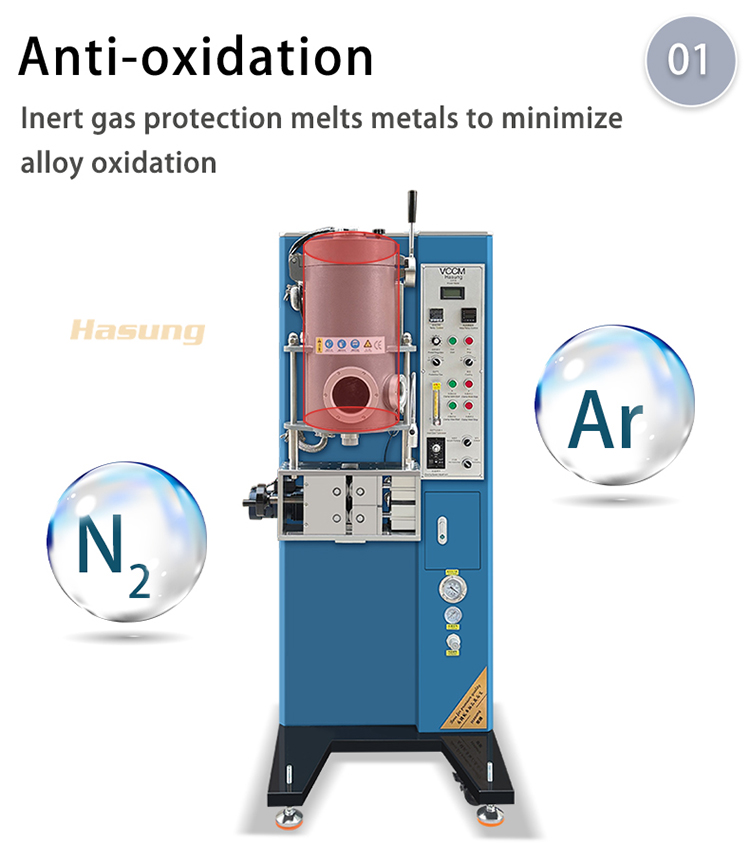

Blanketing with inert gas	Nitrogen/argon selection
Temperature accuracy	±1℃

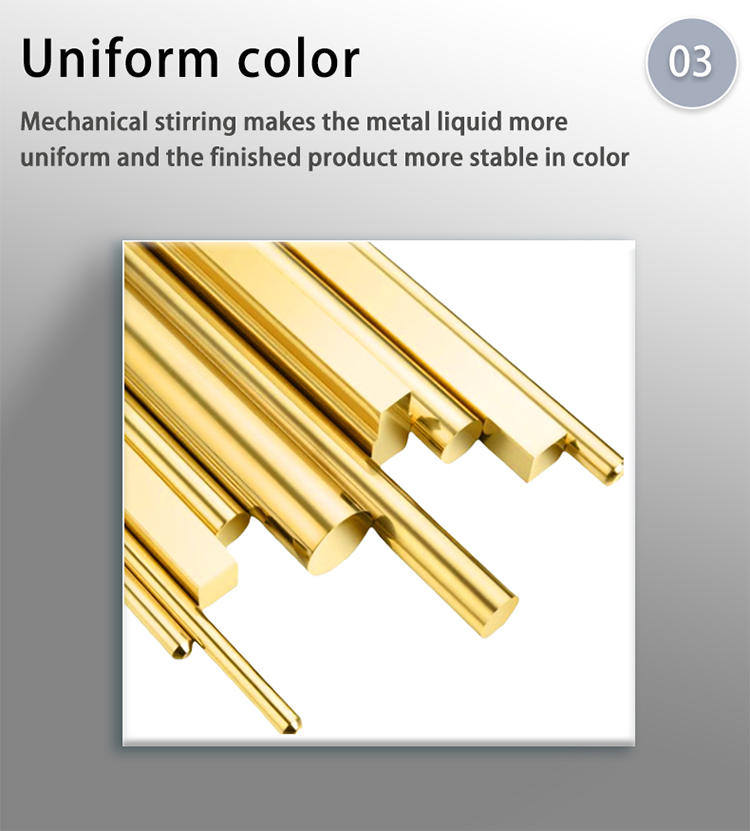

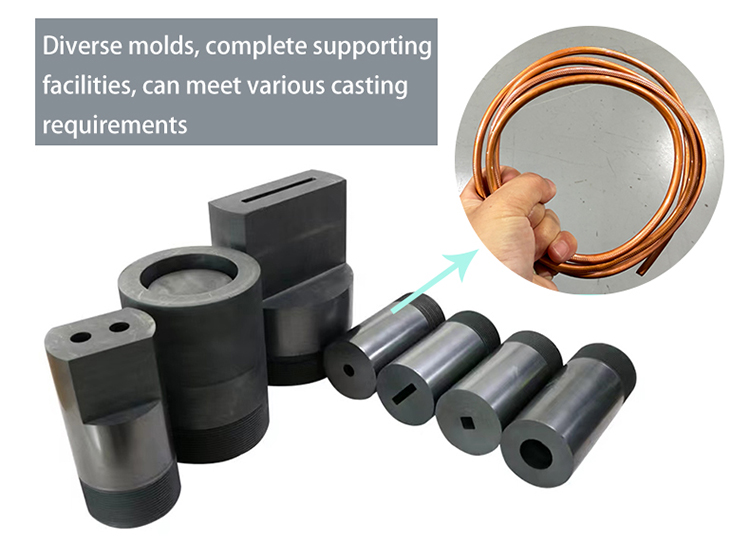

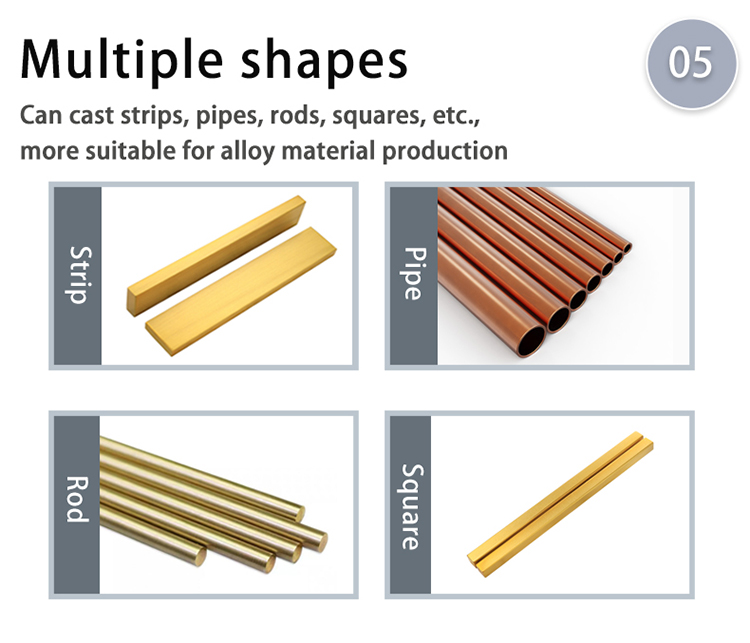

Product shape	strip, square, tube, can be customized strip
Water pressure	0.2-0.4Mpa
Water temp	18-25C
Cooling type: water	chiller or Running water
Vacuum pump	Original German vacuum pump -98Kpa
Dimensions	9606001580mm
Weight	280KG	280KG

Product Display

HS-VCC-(1)
HS-VCC-(3)
HS-VCC-(2)

Product detail pictures:
