Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg – Hasung Detail:

Features

Hasung Dual Use gold and platinum melting furnace can efficiently and effortlessly melt platinum, silver, gold, palladium and certain alloys.

The compact size of the platinum melting furnace makes it convenient to move about.

Hasung multipurpose gold and platinum melting furnace is also suitable for small scale melting because it melts about 1g to 2kg of metals at once, therefore, small businesses that require melting need not worry about getting a melting furnace that only meets their melting needs.

The power utilization of the platinum melting furnace is 5kw, this means that energy is saved when melting with the platinum melting furnace and you don’t have to worry about extra spending on extra power.

Hasung multipurpose gold and platinum melting furnace can meet the melting needs at a jewelry store, recreational metal diggers, research institutes and recycling old metals.

Hasung multi-purpose gold and platinum melting furnace is environmentally safe to use such that the furnace does not generate harmful gases or make disturbing noise. It is also safe for workers to operate as molten metal spillage does not occur.

The melting time is very fast, the platinum melting furnace melts at 2100℃ within 2 minutes, thereby, increasing your work and production efficiency.

All metals melted with our platinum melting furnace usually have a uniform consistency so that when such metal is cast, it has a high-quality finish.

The electromagnetic induction stirring function present within the platinum melting furnace makes the melting process efficient by transferring heat equally and all parts of the metal are melted evenly. This also means that all heat required for melting is totally utilised within the furnace, hence, no increase in temperature of the melting environment.

The in-built water-cooling system present within the furnace makes the furnace melting temperature to be controlled, thereby preventing overheating.

The induction heating technology present within the platinum melting furnace makes the electromagnetic induction possible, which means that all energy that is required for melting is completely utilized within the melting furnace.

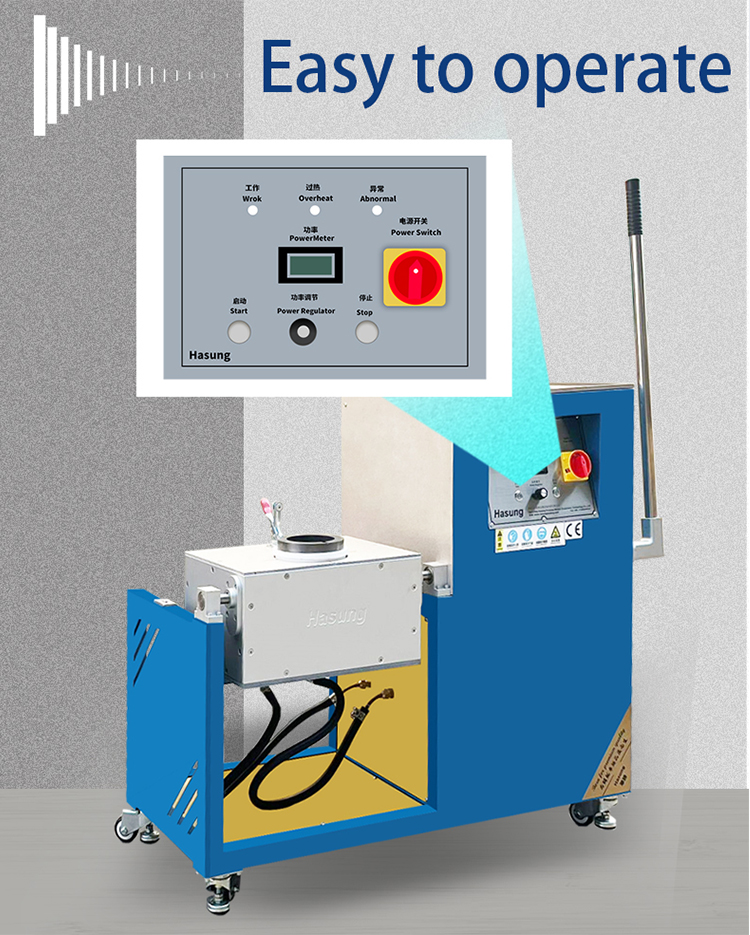

The platinum melting furnace is very easy to operate. The control panel makes it easy for you to control and monitor the melting process.

The Hasung multi-purpose gold and platinum melting furnace is environmentally safe as no heat is caused during use, no gas is released and no noise occurs when melting with the platinum melting furnace.

The melting capacity of any melting surface reaching up to 2100℃ would normally consume excess power, but our gold melting equipment for sale only requires 15kw to begin melting making it cost-effective.

All 8kg melting is done efficiently in 3 minutes, an undefeatable feature of the gold melting equipment for sale. The speed of melting helps you to meet all melting demands faster and more easily.

Gold, silver, bronze, copper, platinum and other alloys can all be melted with our gold melting equipment. This enables you to save money on other melting equipment.

The water pump system present in our gold smelting equipment makes it maintain a normal temperature when melting is ongoing. Thereby, you save money on cooling equipment.

Our gold melting equipment is suitable to melt metals for research and teaching, foundries, recycling metals in jewelry stores, etc.

In respect to its impact on the environment, the noise of the gold and silver melting equipment during the process of melting is relatively low and there is no emission of gas, smoke or dust is also low.

Compared to resistance furnaces and propane burners, Hasung gold melting equipment ensures no loss of metals during the melting process, making our melting equipment more efficient than both resistant furnaces and propane burners.

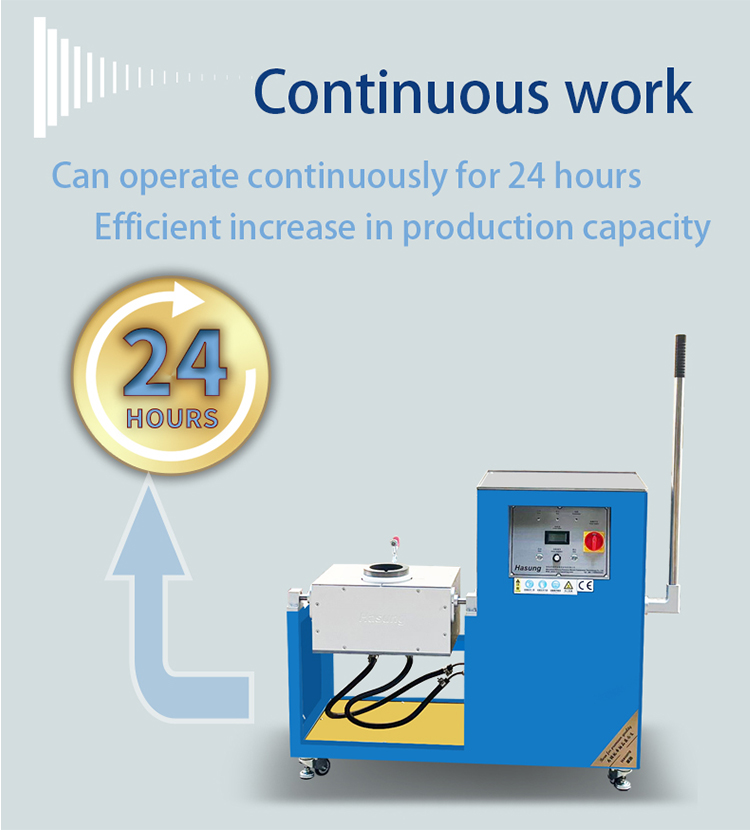

Our gold and silver melting equipment can work continuously for as long as 24 hours.

The operator of the gold melting equipment has a total control of the melting parameters. Should an error occur, the omni-directional warning system helps to raise alarms when potentially harmful points are reached during melting, thereby ensuring the safety of the user.

Maintenance of the gold and silver melting equipment is easy as the crucibles are detachable and can be cleaned after each melting process.



Technical Parameters

Model No. HS-TF2 HS-TF4 HS-TF5 HS-TF8 HS-TF10 HS-TF12
Power 8KW 15KW 15KW 15KW 15KW 15KW
Voltage 380V, 50Hz, 3 phases
Max Temp 1600°C
Melting Time 2-3mins 2-3mins 4-5mins 7-8mins 8-10mins 8-10mins
Temp Accuracy ±1°C
PID temp control Optional
Capacity  Gold 2KG 4KG 5KG 8KG 10KG 12KG
Application Gold, K gold, silver, copper and other alloys
Cooling type Water chiller(sold separately) or Running water (water pump)
Dimensions 130x65x150cm
Net Weight 115kg 115kg 115kg 120kg 130kg 140kg
Shipping Weight 165kg 165kg 165kg 170kg 180kg 190kg





Model No. HS-MDQ1 HS-MDQ2 HS-MDQ3 HS-MDQ4 HS-MDQ5 HS-MDQ8 HS-MDQ10 HS-MDQ15
Power 8KW 15KW 30KW
Voltage 380V, 50Hz, 3 phases
Max Temp 2100°C
Melting Time 2-3mins 3-5mins 4-5mins 6-8mins 8-10mins 3-5mins 5-8mins 6-10mins
Temp Accuracy ±1°C
PID temp control Optional
Capacity (Pt) 1KG 2KG 5KG 4KG 5KG 8KG 10KG 15KG
Application Platinum, Palladium, Stainless steel, Gold, K gold, silver, copper and other alloys
Cooling type Water chiller(sold separately) or Running water (water pump)
Working ability 24 hours continuously running
Dimensions 130x65x150cm
Net Weight 115kg 115kg 115kg 120kg 130kg 140kg 140kg 140kg
Shipping Weight 165kg 165kg 165kg 170kg 180kg 190kg 190kg 190kg

Product Display

HS-TF 详情(1)
HS-TFQ 800x800px 10
HS-TFQ 800x800px 9


Product detail pictures:

Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg  – Hasung detail pictures

Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg  – Hasung detail pictures

Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg  – Hasung detail pictures

Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg  – Hasung detail pictures

Factory source Induction Silver Melting Machine 30kg - Tilting Induction Melting Furnace For Gold Platinum Palladium Rhodium 1kg 5kg 8kg 10kg 12kg  – Hasung detail pictures
