Factory Price 3kg Gold Melting Furnace - Induction Melting Furnace for Gold Platinum Silver Copper Rhodium Palladium – Hasung Detail:

Technical Parameters

With the MU series We offer melting equipment for many different demands and with crucible capacities from 1kg up to 8kg(Au). The metal materials are molten in open crucibles and poured by hand with a tong into the necessary mould.

Melting Units MU Series

Flexible melting machines are designed to melt gold and silver alloys and as well as aluminium, bronze, brass, etc. Due to the strong induction generator up to 15 kW and the low induction frequency the stirring effect of the metal is excellent.

The MUQ series as induction melting machines for platinum, palladium, rhodium, gold, silver, etc.

The MUQ series apply higher power comparing to MU series which can easily melt thoese high melting point metals in a fast way.

Once you purchase the Hasung induction gold furnace for melting gold, silver, copper and other alloys, it serves as an investment because it can last for years, making your cost of production efficient.

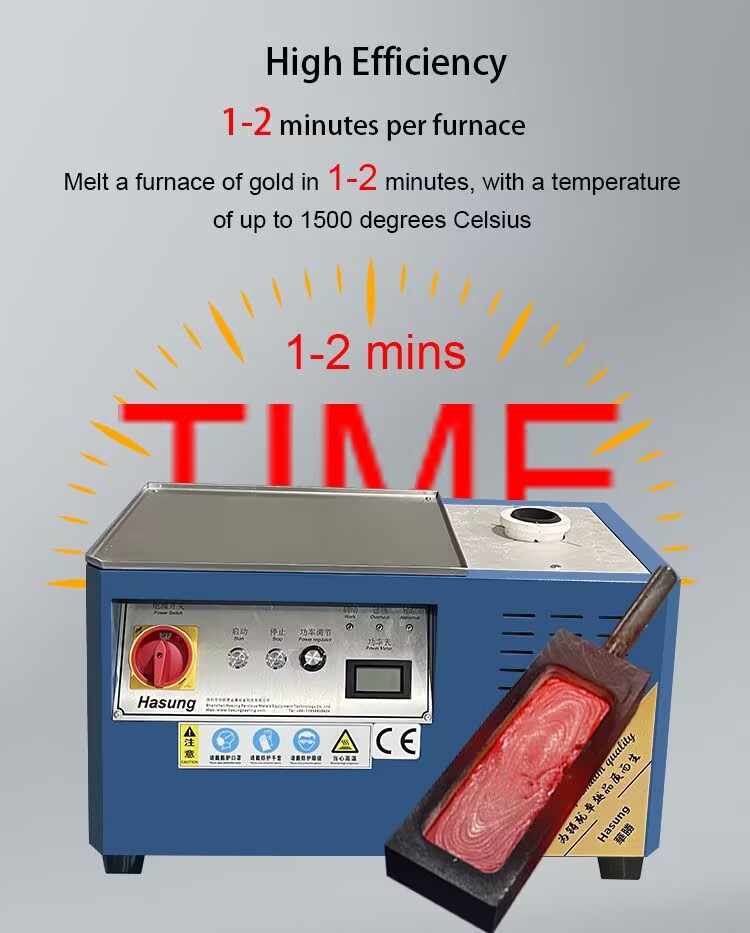

Melting with this electric gold furnace is efficient and fast enough to melt all metals within 2 to 4 minutes. The fast melting rate does not affect the quality of melting at all.

The induction heating system of our melting machine for silver and gold makes the crucible to get heated at the same rate, making all energy savings comparing to other suppliers. With the same power supply, Hasung’s machine is much faster melting speed.

Technical Parameters

Model No. HS-MU1 HS-MU2 HS-MU3 HS-MU4 HS-MU5 HS-MU6 HS-MU8
Voltage 220V single phase/380V 3 phases; 50/60Hz 380V, 3 phases, 50/60Hz
Power  5KW/8KW 8KW 15KW

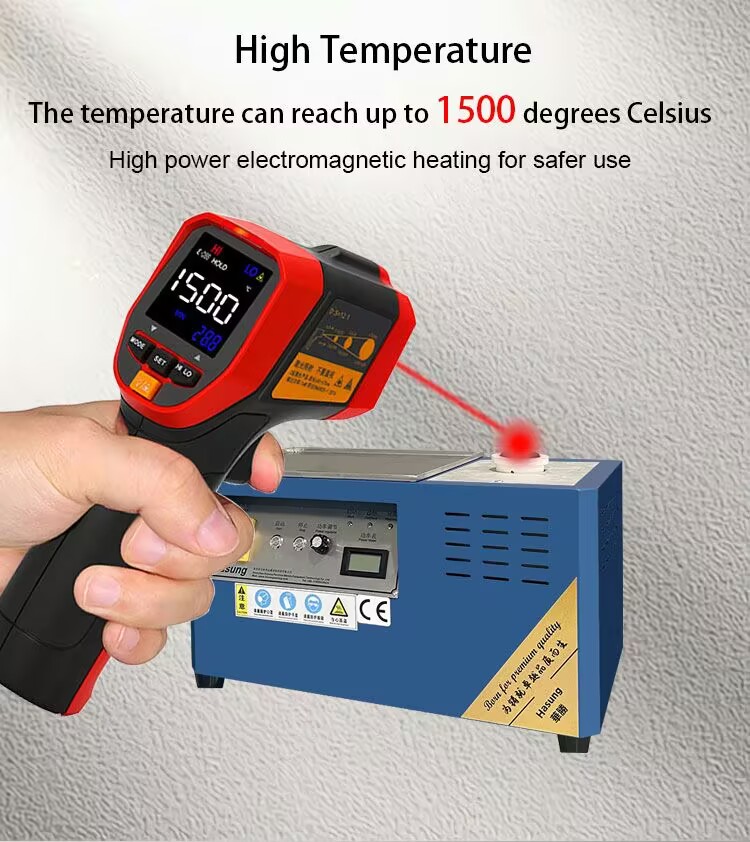

Max Temp 2000°C
Melting Time 1-2  min. 1-2 min. 2-3 min. 2-3 min. 2-3 min. 3-5 min.
PID temp control Optional
Temp Accuracy ±1°C
Capacity (Gold) 1kg 2kg 3kg 4kg 5kg 6kg 8kg
Application  Gold, K gold, silver, copper and other alloys
Cooling type Water chiller(sold separately) or Running water (water pump built in)

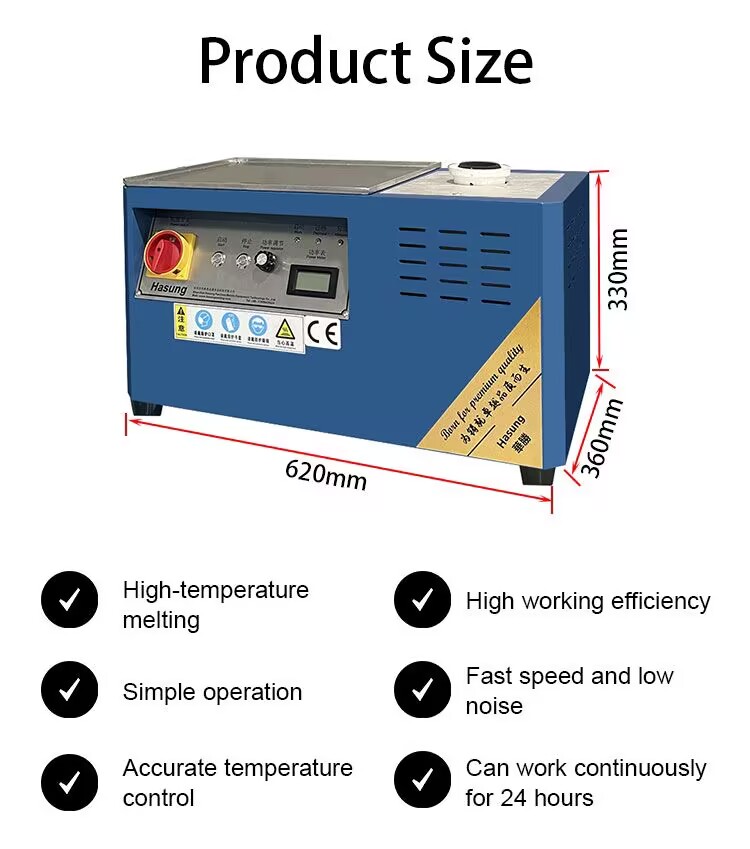

Dimensions 56x48x88cm
Net Weight approx. 60kg approx. 62kg approx.  65kg approx. 66kg approx. 68kg approx. 70kg approx. 72kg
Shipping Weight approx. 85kg approx. 89kg approx. 92kg approx. 95kg approx. 98kg approx. 105kg approx. 110kg
Model No. HS-MUQ1 HS-MUQ2 HS-MUQ3
Voltage 380V ; 50/60Hz  3phases
Power 8KW 15KW
Max Temp 2100°C
Melting Time 1-2  min. 1-2 min. 3-5 min.
Temp Accuracy ±1°C
PID temp control Optional
Capacity (Pt) 1kg 2kg 3kg
Application Platinum, Palladium, Stainless steel, Gold, K gold, silver, copper and other alloys
Cooling type Water chiller(sold separately) or Running water (water pump)
Dimensions 56x48x88cm
Net Weight approx. 60kg approx. 62kg approx. 63kg
Shipping Weight approx. 89kg approx. 94kg approx. 95kg
