factory customized Gold Bangle Making Machine - Mini Vacuum Pressure Casting Machine for Platinum Palladium Steel Gold Silver – Hasung Detail:

Features

1. Intelligent jewellery vacuum pressure casting equipment Shenzhen Hasung Precious Metals Equipment Co. , Ltd is specially designed to produce precious metals casting and melting equipment with first class quality in China.

2. Using high-frequency heating technology, automatic frequency tracking and multiple protection technologies, it can be melted in a short time, energy saving and environmental protection, and high work efficiency.

3. The closed type + vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and prevent the mixing of impurities. This equipment is suitable for the casting of high-purity metal materials or easily oxidized elemental metals.

4. Using a closed + vacuum/inert gas protection melting chamber, melting and vacuuming are performed at the same time, the time is halved, and the production efficiency is greatly improved.

5. Melting in an inert gas environment, the oxidation loss of the carbon crucible is almost negligible.

6. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.

7. It adopts Mistake Proofing (anti-fool) automatic control system, which is easier to use.

8. Using PID temperature control system, the temperature is more accurate (±1°C).

9. The HS-MC vacuum pressurized casting equipment is independently developed and manufactured with advanced technology and is dedicated to the melting and casting of platinum, palladium, stainless steel, gold, silver, copper and other alloys.

10. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other well-known brand components at home and abroad.

11. Melting, electromagnetic stirring, and refrigeration in a closed + vacuum/inert gas protection melting room, so that the product has the characteristics of no oxidation, low loss, no pores, no segregation in color, and beautiful appearance.

Hasung Vacuum Machine Compare To Other Companies

1. With dual-chamber, one for melting with positive pressure, one for casting with negative pressure and vacuum.

2. Larger capacity up to 400-500g maximum capacity for platinum.

3. Equipped with well-known Japan and German brands components.

4. Max. casting pressure up to 0.3Mpa.

Technical Parameters

Model No. HS-MC1
Voltage 220V, 50/60Hz
Power Supply 5KW
Temp Accuracy ±1°C
Casting pressure 0.1-0.3Mpa (adjust.)
Max. Capacity (Au/Pt) 500g
Max. Flaks size 3.15″x3.15″ (80x80mm)
Application Platinum, Palladium, Stainless steel, Gold, silver, copper and other alloys

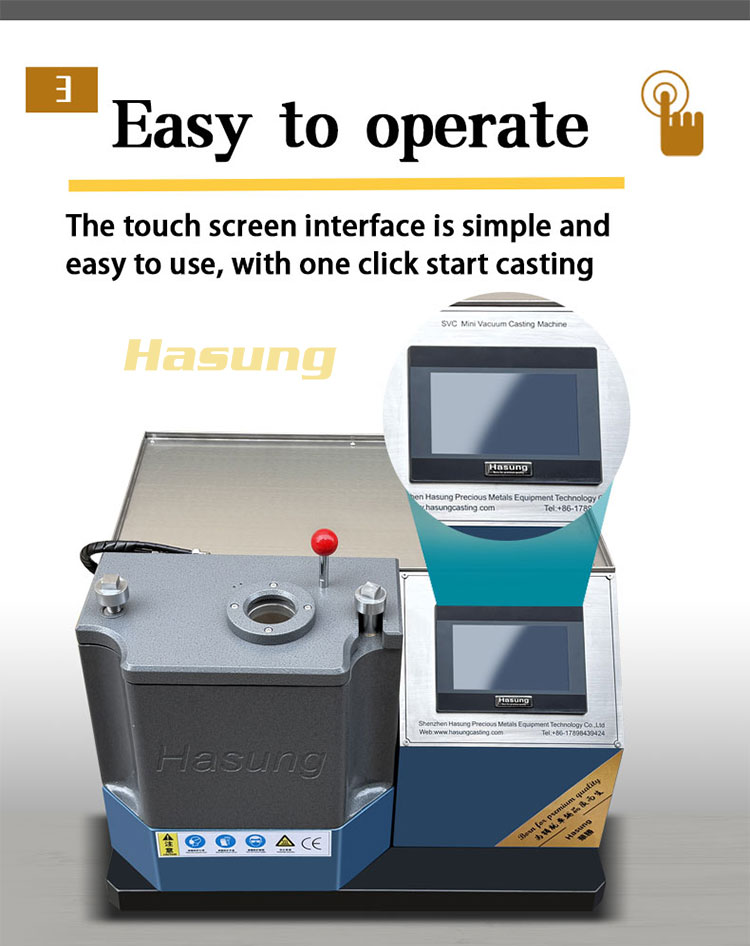

Operation method One-key operation to complete the entire process, POKA YOKE foolproof system
Control System Mitsubishi PLC+Human-machine interface intelligent control system
Protective Gas Nitrogen/Argon
Vacuum pump Included
Cooling type Running Water or Water chiller (Sold separately)
Dimensions 560x450x680mm
Weight approx. 80kg
Shipping Weight approx. 140kg

Product Display

HS-MC1-(2)
HS-MC1-(6)
HS-MC1-(4)
HS-MC1-(1)
HS-MC1-(5)
