100% Original Factory Vacuum Gold Continuous Casting Equipment - VC Series Jewelry Vacuum Pressure Casting Machine – Hasung Detail:

Features

1. Operation method: One-key operation to complete the entire process, POKA YOKE foolproof system.

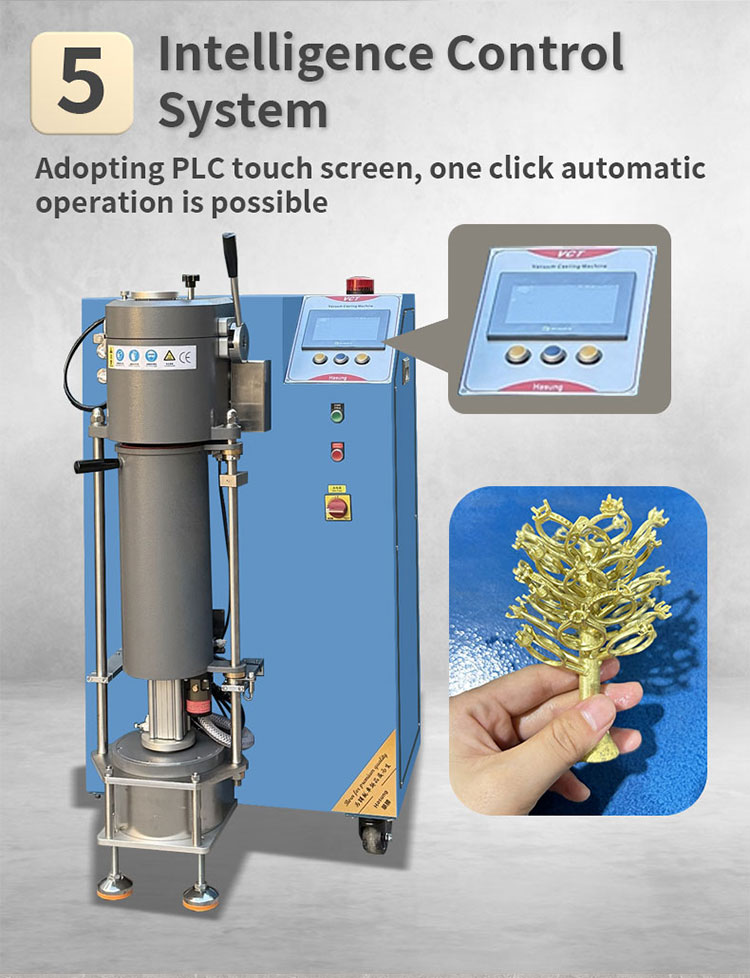

2. Control system: Mitsubishi PLC+Human-machine interface intelligent control system (optional).

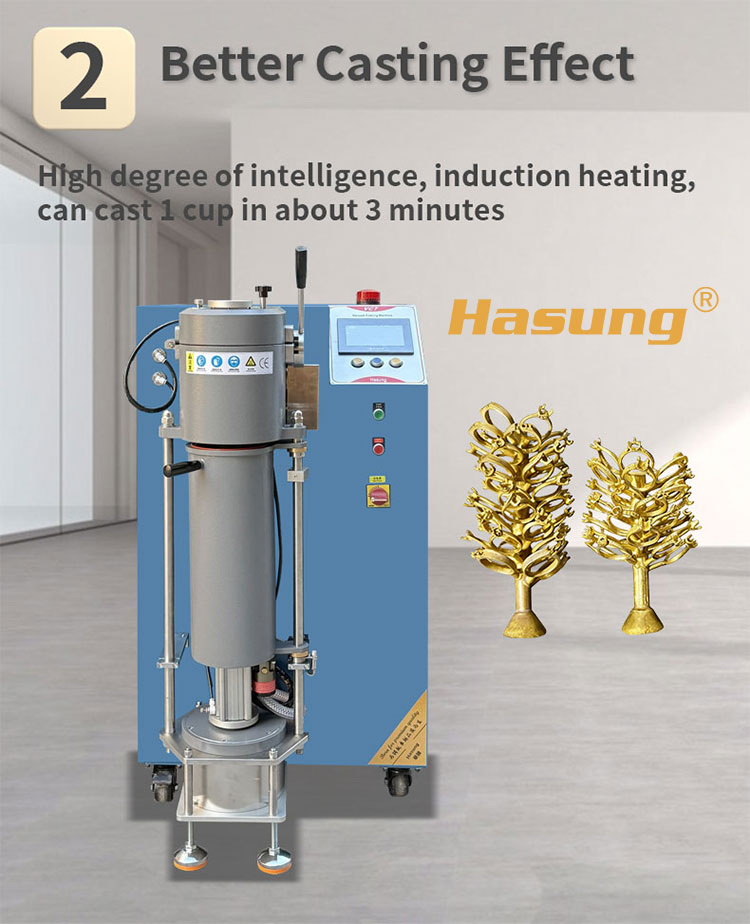

3. Using German high-frequency heating technology, automatic frequency tracking and multiple protection technologies, it can be melted in a short time, energy saving, and high work efficiency.

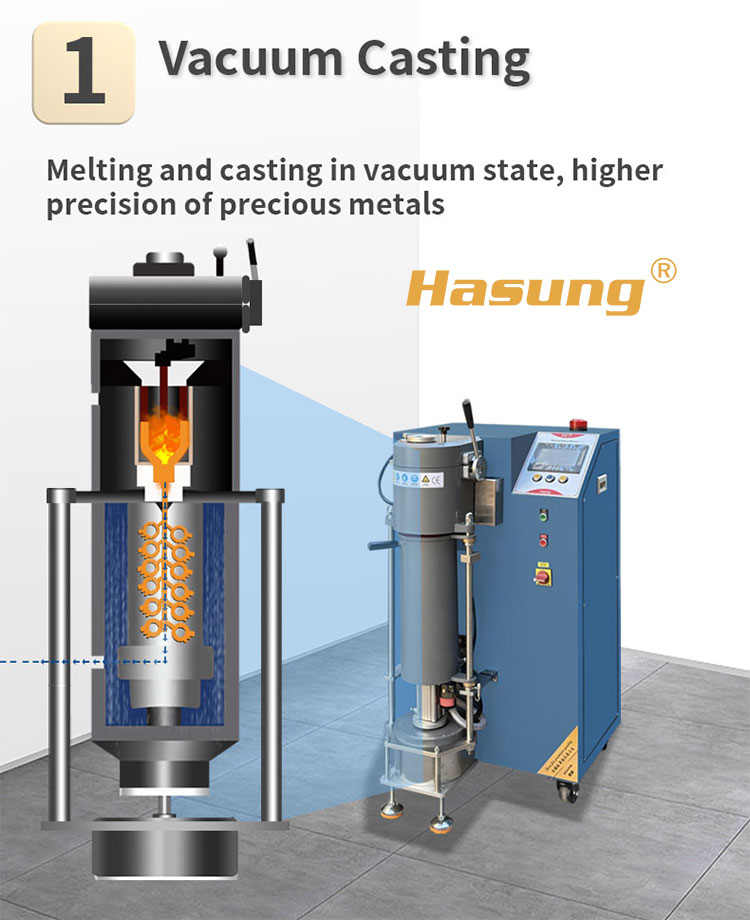

4. The closed type/channel type + vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and the mixing of impurities. This equipment is suitable for the casting of high-purity metal materials or elemental metals that are easily oxidized.

5. Adopt closed/channel type + vacuum/inert gas to protect the melting chamber, melting and cooling are performed at the same time, the time is halved and the production efficiency is increased.

6. Melting in an inert gas environment, the oxidation loss of the carbon mold is almost negligible.

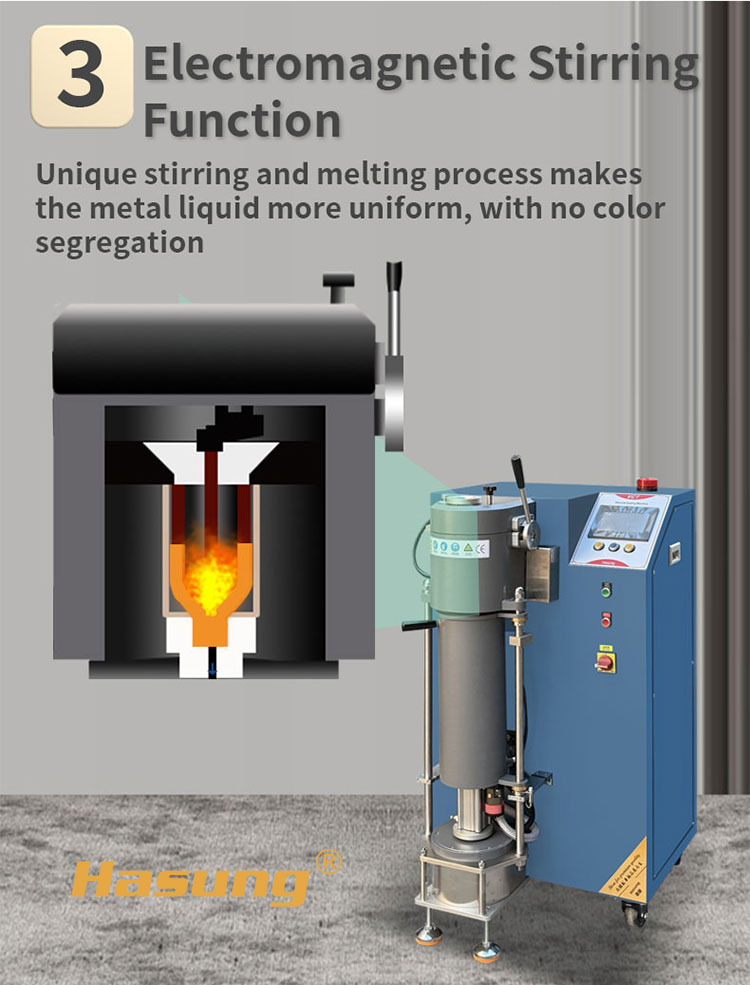

7. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.

8. It adopts Mistake Proofing (anti-fool) automatic control system, which is easier to use.

9. Using PID temperature control system, the temperature is more accurate (±1°C).

10. HS-VC gold and silver casting forming equipment/full-automatic production line is independently developed and manufactured with advanced technical level products for the smelting and casting of gold, silver, copper and other alloys.

11. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other domestic and foreign brand components.

12. Melting, electromagnetic stirring, and refrigeration in a closed/channel + vacuum/inert gas protection melting room, so that the product has the characteristics of no oxidation, low loss, no porosity, no segregation in color, and beautiful appearance.

Why Do You Choose Hasung Vacuum Pressure Casting Machine?

Hasung Vacuum Casting Machines compare to other companies

1. Energy saving. With low power consumption of 5KW 220V single phase.

2. Good melting speed. Melting speed is within 2 minutes which is as fast as others’ machines of 15KW 380V.

3. 1kg or 2kg capacity could be equipped with 220V single phase which is suitable for the clients who don’t have 380V 3 phases electricity. Main power 5KW, casting quantity in 18 kt up to 2,000 g.  380V 8KW is optional which melting speed is faster.

4. Hasung original parts are from well-known domestic Japan and German brands.

Technical Parameters

Model No. HS-VC1 HS-VC2 HS-VC4
Voltage 220V, 50/60Hz single phase 220V /380V, 50/60Hz, 3 phases 380V, 50/60Hz, 3 phases
Power Supply 5KW 5KW/8KW 8KW
Max Temp 1500°C
Melting Time 2-3  min. 3-5 min. 3-5 min.
Protective Gas Argon / Nitrogen
Temp Accuracy ±1°C
Capacity (Gold) 1kg 2kg 4kg
Casting pressure  0.1-0.3Mpa (Adjustable)
Vacuum Pump High quality vacuum pump
Application Gold, K gold, silver, copper and other alloys
Operation method One-key operation to complete the entire process, POKA YOKE foolproof system
Cooling type Water chiller(sold separately) or Running water
Dimensions 680*680*1230mm
Weight approx. 120kg approx. 120kg approx. 130kg

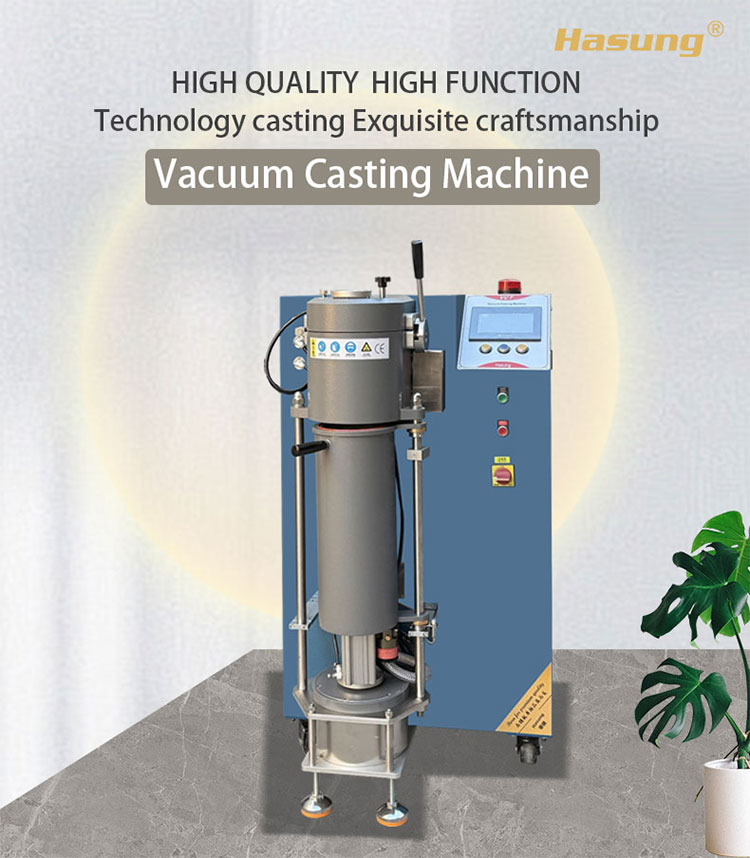

Product Display

HS-VC-(3)
QQ图片20220708145046
photobank (9)


Product detail pictures:

100% Original Factory Vacuum Gold Continuous Casting Equipment - VC Series Jewelry Vacuum Pressure Casting Machine  – Hasung detail pictures

100% Original Factory Vacuum Gold Continuous Casting Equipment - VC Series Jewelry Vacuum Pressure Casting Machine  – Hasung detail pictures

100% Original Factory Vacuum Gold Continuous Casting Equipment - VC Series Jewelry Vacuum Pressure Casting Machine  – Hasung detail pictures

100% Original Factory Vacuum Gold Continuous Casting Equipment - VC Series Jewelry Vacuum Pressure Casting Machine  – Hasung detail pictures
